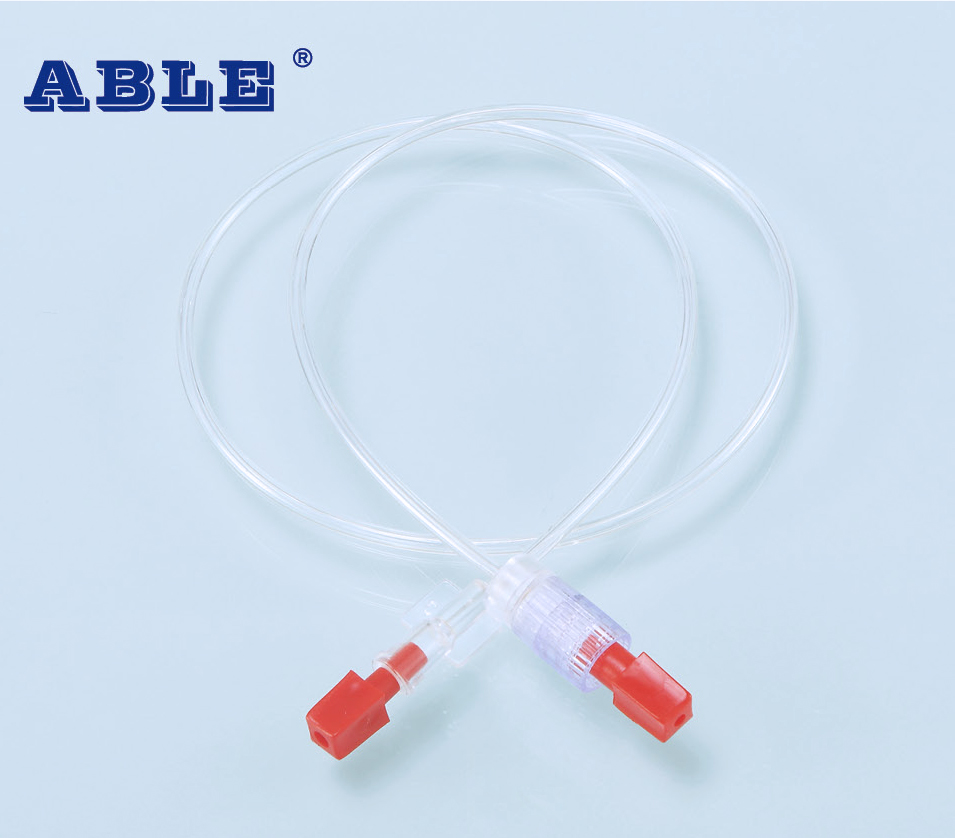

The ABLE® Disposable Infusion Extension Tube is made of medical grade polycarbonate and PU (or PVC). It has a linearity shape which consists of tube, male/female connector and protection caps.
Intended Use and Indication
Order Information
Contraindications
Warnings and Precautions
Disposable Infusion Extension Tube is intended for extending infusion lines.
It is sterile, single use and intended to be used by professional health care personnel.
Indications for Use:
Disposable Infusion Extension Tube is intended to connect with other infusion devices, allocated according to actual needs of different length, widely used in invasive blood pressure monitoring and infusion therapy.
|
Type |
Outer Diameter |
Length |
|

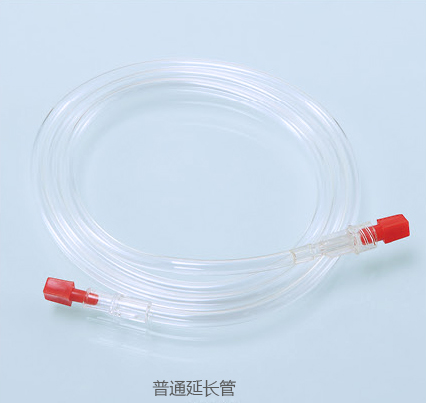

Normal |
5.4mm |
50cm/100cm150cm |
|

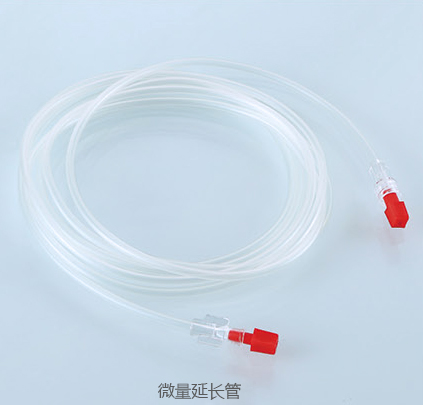

Micro-flow |
2.0mm |
100cm/120cm/150cm |
|
Pressure |
2.3mm/2.7mm |
10cm~150cm |
|

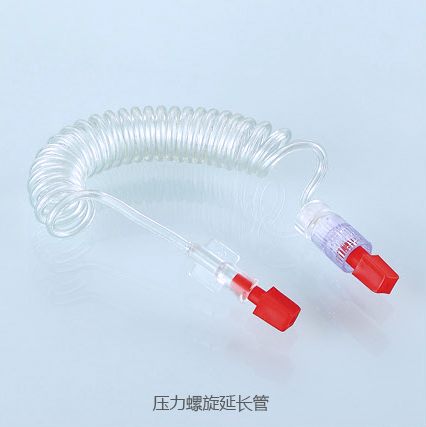

Pressure (spiral) |
2.3mm |
300cm |
No absolute contraindication.
1. Single use only, do NOT reuse. Reuse can lead to serious inflammation or inflection even death.
2. Dispose of the device as a contaminated medical device and in accordance with hospital protocols.
3. The product is free from pyrogens.
4. Do not use the product when the package is damaged.
5. The product is not made with DEHP, Latex/ Natural rubber.
6. The infusion devices to be used in combination should be devices that have been legally marketed.
7. If there any serious incident that has occurred in relation to the device should be reported to the manufacturer and the competent authority of the Member State in which the user and/or patient is established.
